Features:
*GMP and DIN EN ISO 14644 compliant ceiling systems
*All services from one source
*Project-specific cleanroom ceilings:
heavy-duty ceilings,accessible ceiling systems, etc.
*Tested guardrail systems for fall protection
*Extensive range of equipment available, such as inspection hatches or air grilles
*Ceiling systems for wafer handling
Laifung Modular cleanroom Walk-On Solid Panel Ceiling System
Engineered Purity from Above
Laifung Modular Cleanroom System provides a GMP and ISO 14644-compliant cleanroom ceiling system. Designed with a flush interlocking panel structure,
it ensures a seamless, easy-to-clean surface ideal for pharmaceuticals, laboratories, hospital operating rooms, and food & beverage facilities.
All Laifung cleanroom ceiling systems are manufactured in accordance with cleanroom standards and regulations.
Features:
|
|
|
|
|
|
Specifications:

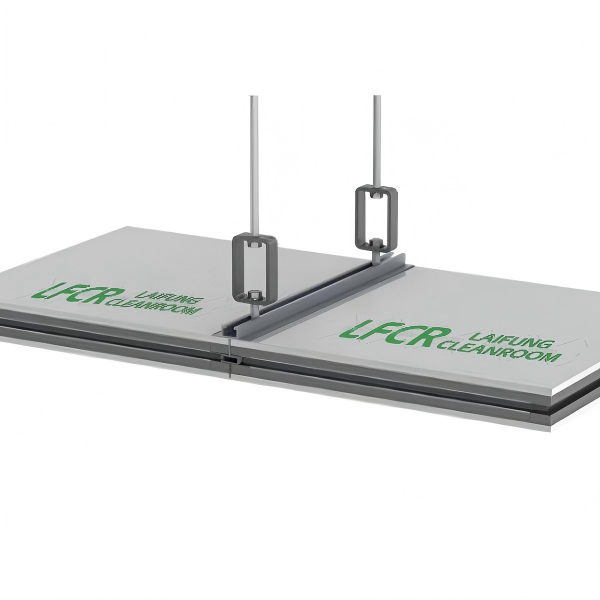

| Flush interlocking design | Panels feature a panel-to-panel edge detail that creates a seamless, flush surface. |
| Impervious face finish | Joints are sealed using silicone seal or PVC cold weld infill to ensure a completely sealed interior ceiling surface. |
| Structural connection | The ceiling system is suspended from the building’s primary structure using threaded bar drop rods. |
| Standard panel dimensions | 1200*3000mm(longer lengths available based on ceiling load requirements). |
| Integrated components: Supports flush installation of | Cleanroom walk-on light fittings (top & bottom access) |
| HEPA and non-HEPA terminal housing air diffusers | |
| Ensures a smooth, crevice-free cleaning surface. | |
| Panel thickness & load capacity | 50 mm thick → 0.9–1.5 kN/m² walk-on load (depending on span) 65–75 mm thick → 2–3 kN/m² walk-on load (depending on span) |
| Outer finishes available | PET coated metal;uPVC coated metal;Stainless steel;HPL (Phenolic Laminate);Standard polyester powder coat |
| Core materials available | Non-combustible options including Rockwool and Aluminum Honeycomb |
| Fire-rated version | Semi-flush fire-rated design available for up to 120 minutes, depending on design limitations. |
