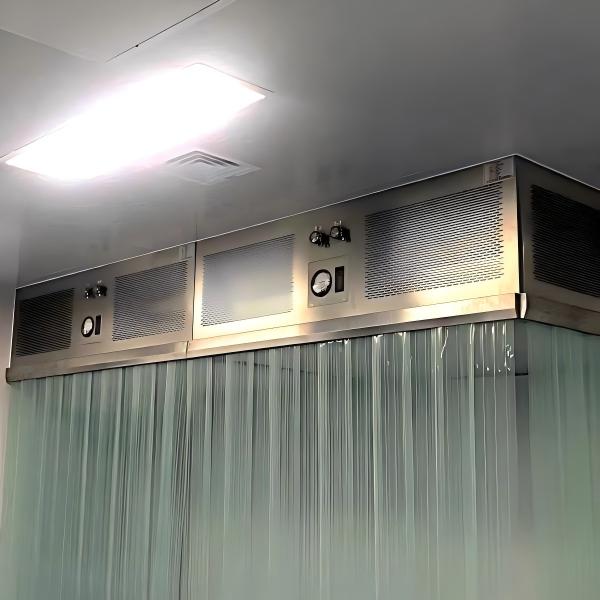

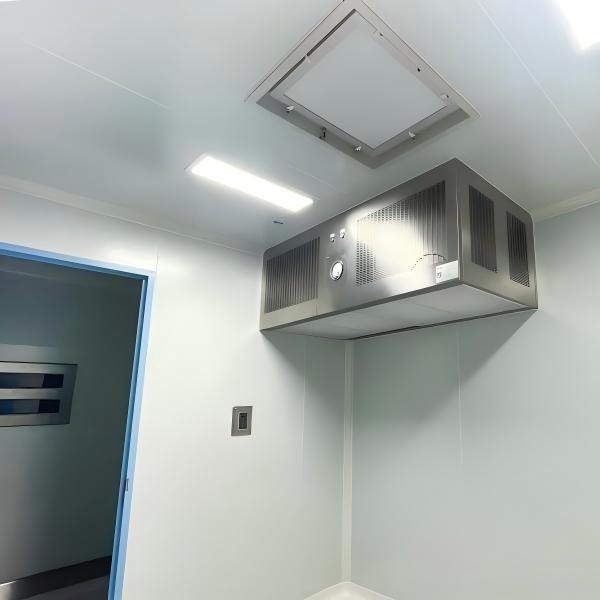

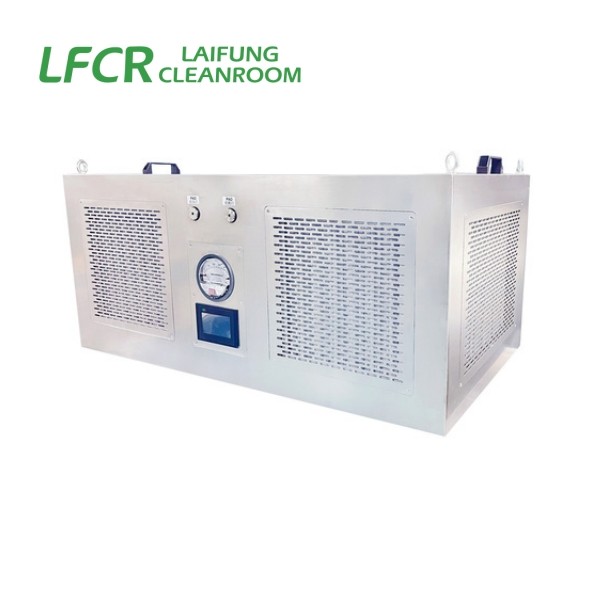

Class 100 Modular Laminar Airflow Solution
Vertical Unidirectional Flow | ISO 5 Area | HEPA Module with PAO Ports

The Class 100 Modular Laminar Airflow Solution is a vertical laminar flow system composed of one or more airflow modules that create a localized ISO 5 (Class 100) dust-free and sterile environment.
This solution is widely applied in precision machinery, electronics, pharmaceuticals, food processing, fine chemicals, biotechnology, as well as hospital operating rooms and biological laboratories where high cleanliness and contamination-free environments are essential.

Application:

In pharmaceutical cleanrooms, localized Class 100 (ISO 5) zones are often required. These areas may include entire rooms, specific rooms, or small isolated sections of larger cleanrooms.
Class 100 zones typically range from a few square meters to sub-square-meter areas, yet they are often critical points in production, including:

l Sterile drug filling, dispensing, and capping

l Biological product filling, freeze-drying, and capping

l Core operations where extreme cleanliness directly affects product quality

The Class 100 Modular Laminar Airflow Solution provides ISO 5 or better air quality to meet stringent cleanliness requirements in pharmaceutical and biotechnology processes.

Working Principle:

A Class 100 laminar airflow module functions as follows:

1.Room air is drawn in and pushed through a high-efficiency HEPA filter by an internal fan.

2.A damping (equalizing) layer distributes the air pressure evenly.

3.The system forms a uniform, vertical unidirectional airflow.

4.Clean, filtered air flows downward across the work zone, ensuring the working area maintains ISO 5 (Class 100) cleanliness and preventing contamination from entering the critical process zone.

Features:

• High Cleanliness

Provides unidirectional vertical laminar airflow that achieves ISO 5 (Class 100) standards to maintain particle-free working environments.

• Flexible Configuration

Modules can be used individually or combined to form Class 100 zones of various sizes—from small workstations to larger modular clean areas.

• Energy-Efficient & Cost-Effective

Compared with traditional civil-constructed Class 100 cleanrooms, modular laminar flow systems offer:

Lower initial investment

Faster installation and deployment

Reduced operating and maintenance costs

• Wide Range of Applications

Suitable for clean-critical processes in mechanical assembly, electronics, pharmaceuticals, biotechnology, food production, and hospital & laboratory environments.

• Customizable Design

Available in custom sizes, dimensions, materials, airflow patterns, HEPA efficiency, and air velocity to meet specialized process requirements.
